Distribution Transformer

Name: Distribution Transformer
Brand: Absolute Webtech International
Availability: InStock

Reliable, low-loss distribution transformers for commercial, industrial, and utility applications across Kuwait and the GCC.

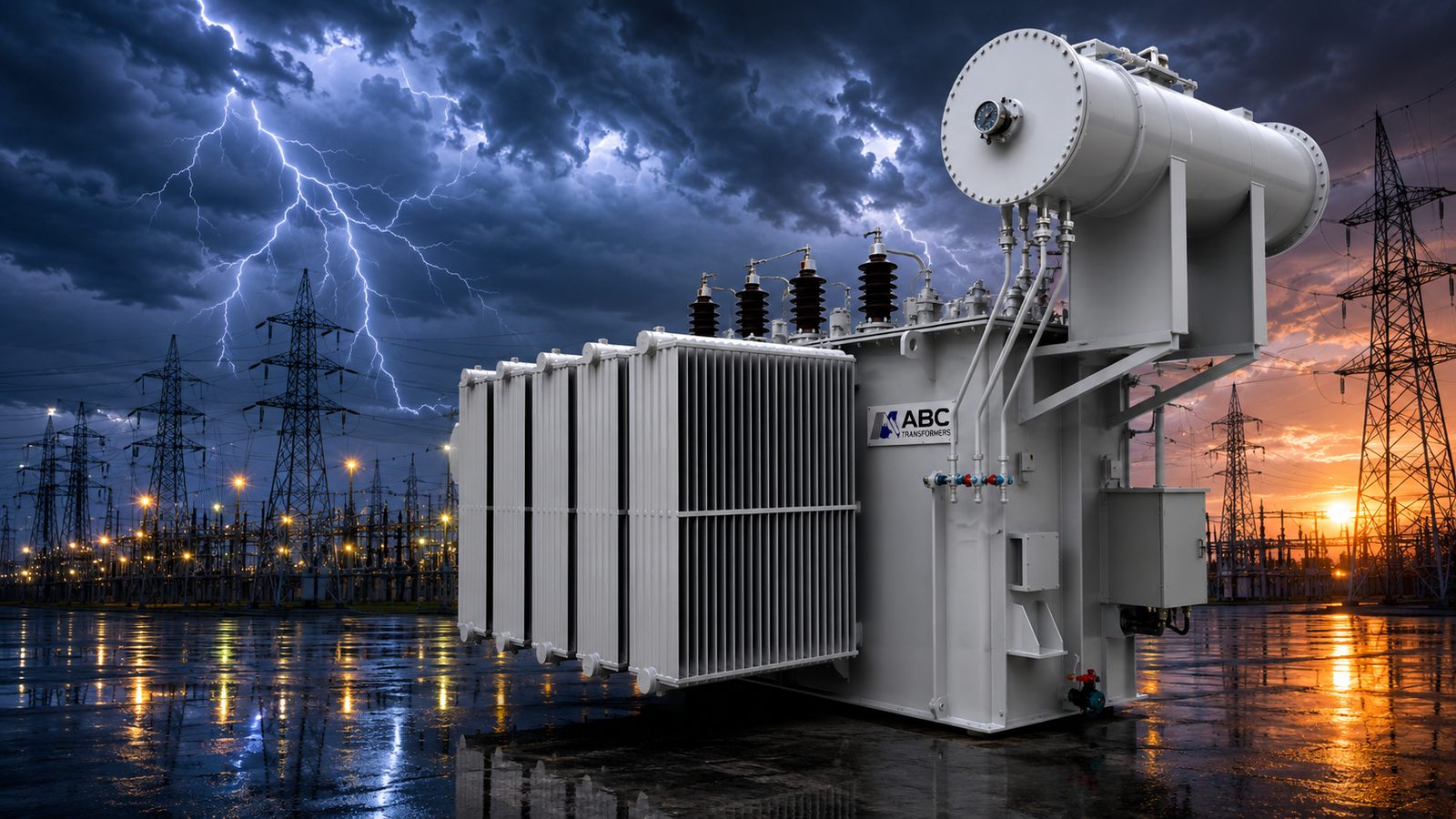

ABC Make Distribution Transformers

Our distribution transformers range up to 5,000 kVA, making them a suitable option for heavy usage across commercial, industrial, and utility applications. The voltage classes that are usually required are 6.6, 11, 15, 20, and 33 kV - other ranges available as per requirements.

We supply our transformers under the applicable standard IEC 60076, with the ONAN (Oil Natural Air Natural) cooling system as standard. Indoor and outdoor installations are available depending on the client's needs and setting.

Our transformers operate at 50 Hz and 60 Hz frequency. The vector group used is Dyn5 or Dyn11, which can be customized per client requirement. The winding material used is copper. Both Off-Circuit (OCTC) and On-Load (OLTC) tap changers are available as per client needs. Impedance is kept in line with applicable standards, and units are developed with modern technologies with different termination options for new fitting or replacement.

Key Highlights

Rating up to 5,000 kVA
Voltage: 6.6 / 11 / 15 / 20 / 33 kV
Standard: IEC 60076
Cooling: ONAN (standard)
Frequency: 50 Hz & 60 Hz
Vector Group: Dyn5 / Dyn11 (customizable)
Winding: Copper
Tap Changer: OCTC / OLTC
Indoor & Outdoor installations

Standard Fittings

We guarantee quality performance through the utilization of standard fittings included on every unit:

✦Two Earthing Terminals

✦Air Release Device

✦Silica Gel Breather

✦Oil Level Gauge

✦Drain cum Sampling Valve

✦Oil Filling Hole

✦Thermometer Pocket

✦Lifting Lugs

✦Explosion Vent Device

✦Filter Valve

✦Arching Horns

✦Off Circuit Tap Changer

Optional Fittings

We offer a wide range of optional fittings that can be customized as per client requirements:

◆Bird Guard

◆OTI (Oil Temperature Indicator)

◆WTI (Winding Temperature Indicator)

◆Terminal Connector

◆Buchholz Relay (internal fault protection)

◆MOG (Magnetic Oil Level Gauge)

◆On Load Tap Changer (OLTC)

◆HT / LT Breaker

◆Expulsion Fuse

Technical Specifications

Parameter	Specification
Rated Power	Up to 5,000 kVA
Voltage Classes	6.6 kV / 11 kV / 15 kV / 20 kV / 33 kV (customizable)
Standard	IEC 60076
Cooling System	ONAN (Oil Natural Air Natural)
Frequency	50 Hz / 60 Hz
Vector Group	Dyn5 / Dyn11 (customizable)
Winding Material	Copper
Tap Changer	OCTC (Off-Circuit) / OLTC (On-Load)
Installation	Indoor & Outdoor
Termination	Customizable for new fitting or replacement

Enquire About Distribution Transformers

Tell us your kVA rating, voltage ratio, and installation type - we'll deliver the right solution.
